Cressi Mini Console 2

Product Description

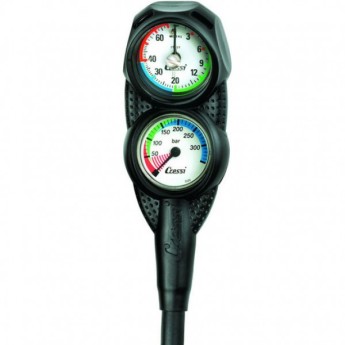

Miniconsole 2 is a small console that houses the Cressi mini pressure gauge and a new, small, analogical depth gauge. It is a high quality instrument with a metal case and membrane functioning and has a large parabolic scale.

On the luminescent face the first 12 metres, which correspond to the area of decompression stops, are spaced out and perfectly legible. The end scale is at 70 metres (or 230 feet in the imperial version) and the face is divided into three different coloured zones: green up to 20 metres, light blue from 20 to 40 metres, red from 40 metres to the end of the scale.

The instrument has a maximum depth indicator that blocks on the maximum depth reached during the dive. The pressure and depth gauges are positioned in such a way that both instruments can be read quickly and easily in any conditions.

At the end of the console, slightly to the sides, there are two loops for fastening the instrument to the jacket so that it does not hang down with the risk of catching and damaging the environment.

Technical characteristics of the Depth Gauge

Case material: chromium plated brass
End scale: 70 metres or 230 feet
Face: luminescent with coloured sections
Functioning: membrane
Special characteristics: maximum depth indicator, coloured sections
Instrument diameter: 50 mm
Instrument height: 24.5 mm

Mini pressure gauge

Case material: chromium plated brass
End scale: 350 bar or 5000 psi
Face: luminescent with coloured sections
Pressure release valve: incorporated
Instrument diameter: 50 mm
Height of case: 14 mm
Total instrument height: 17 mm
Hose diameter: 11 mm

Miniconsole 2

weight: 420 g (including HP hose)
