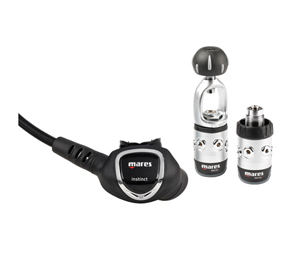

Regulator Mares Instinct 12S

Product Description

Instinct 12S

One of a kind

• Hydrodynamic second stage shape
• Lateral exhaust tee
• Lightweight

White version code: 416229 ( picture N°2 )

The revolutionary design of this second stage introduces a multiplicity of benefits.
The side exhaust deflects the exhaled breath, so that hardly any bubbles will ever crowd your view. The angled diaphragm combined
with the VAD system ensures high performance in any orientation.
Compensating openings in the back minimize the likelihood of freeflows in strong current. The 12S first stage features DFC system for
consistent flow, Tri-material poppet to guarantee high reliability and four pre-oriented LP ports.

All current in line Mares Regulators are compatible up to 40% Oxygen (EAN 40) right out of the box.

Product Details
Code: 416164
Material: Technopolymer
First stage: Balanced diaphragm design
First stage weight (g) INT: 674
First stage weight (g) DIN300: 574
Second stage weight (g): 150
Total weight (g) INT: 962
Total weight (g) DIN300: 859
Second stage dimension: Compact
Oil/Dry cold water kit: Dry
Nitrox: –
HP Ports: 2 HP 7/16″ UNF ports
LP Ports: 4 LP 3/8″ UNF ports
Inhale pressure: 10.70 mbar
Inhale pos pressure: 2.44 mbar
Exhale pressure: 10.83 mbar
Ext work breathing: 1.02 J/l
Inhale work: 0.33 J/l
Pos inhale work: 0.04 J/l
Exhale work: 0.69 J/l
Pressure depth: 50m (165ft)
